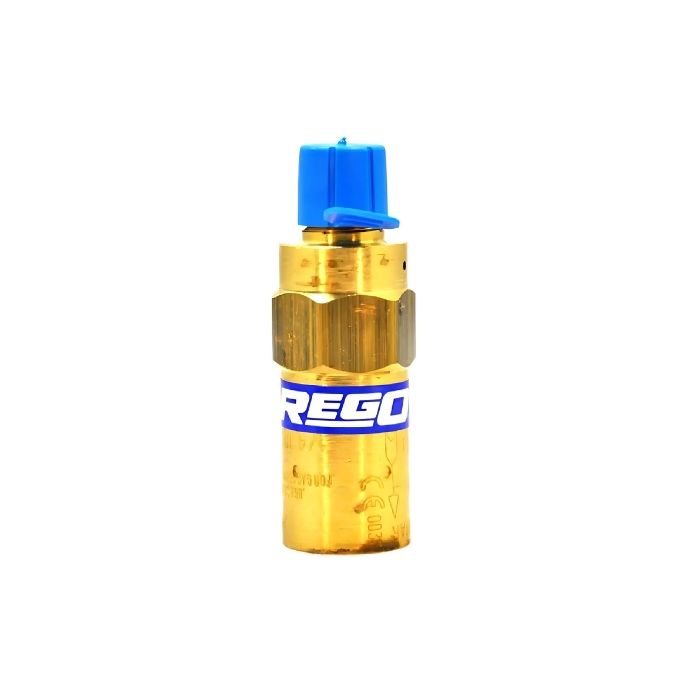

1/4" NPT Settings to 100 PSIG Fluorosilicone Seat - PRV9432F100
In stock
As low as $36.52 each!
SKU: PRV9432F100
1/4" NPT Settings to 100 PSIG Fluorosilicone Seat
Cryogenic Relief Valves
Liquid Relief Valves
SKU: PRV9432F100
$45.58
- Buy 2 for $42.54 each and save 7%
- FREE delivery available*
- Next day delivery available (Order before 4pm Mon-Thur)
As low as $36.52 each!
SKU: PRV9432F100
1/4" NPT Settings to 100 PSIG Fluorosilicone Seat
Cryogenic Relief Valves
Liquid Relief Valves
SKU
PRV9432F100
Categories:
As low as $36.52 each!
SKU: PRV9432F100
1/4" NPT Settings to 100 PSIG Fluorosilicone Seat
9400 series relief valves - designed for vapor line safety relief applications and cryogenic liquid containers.
Cleaned and packaged for oxygen service per CGA G-4.1
Bubble tight at 95% of set pressure
Color coded labels clearly identify pressure setting range
Tamper resistant
Adapters provide standard pipe thread connections for venting gas to the outdoors
Repeatable performance
100% factory tested
Temperature Range
(Teflon Seat) -320° to +165° F (-196ºC to +74ºC)
(Flurosilicone Seat) -60° to +165° F (-51ºC to +74ºC)
Rated for gas service only
In liquid service be sure to use with a candy cane riser (Sold Separately)
Setpoint tolerance ± 3%
