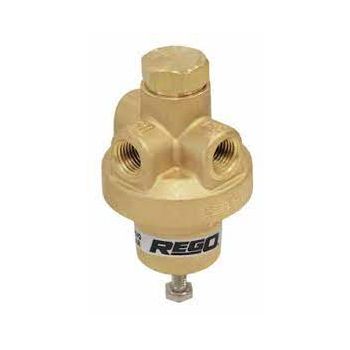

CBH SERIES

CBH SERIES

This hardworking series of cryogenic regulators joins together the functions of pressure building & economizing. The product is compact and does both jobs effectively. Available in multiple pressures.

• All parts made to work well in extremely low temps, down to -320 Farenheit, or -196 Celsiuscopper alloy

• PTFE seat = positive shut-off down to -320 as well.

• High & economizers = compact size, fit and work in tight spaces

• Made to be interchangeable with existing cryogenic regulator units

• Inlet screen keeps out unwanted materials and debris

• Locknut = keep a fixed screw setting

• Max inlet 550 psig

• Cleaned for oxygen per CGA G-4.1

• Made to be used with Argon, CO2, Nitrogen, Oxygen, LNG

Body > Brass

Bonnet > Brass

Seat Disk > PTFE

Springs --> Stainless Steel

Gaskets -->PTFE & Copper

Diaphragm --> Bronze
