1.875" Quikonnect Vacuum Coupling
1.875" Quikonnect Vacuum Coupling
SKU: B-162-M
- Buy 2 for $147.29 each and save 7%
- FREE delivery available*
- Next day delivery available (Order before 4pm Mon-Thur)
1.875" Quikonnect Vacuum Coupling
0.375" Quikonnect Vacuum Coupling
Features
• An extensive range of tube sizes available. Most sizes nest, and can be used as reducers in combination with one another.
• May be used for vacuum down to 1x10-8 Microns
• Viton O-rings are standard
• “Quikonnect” couplings have four basic components: Knurled Nut, Retainer Ring, O-ring, Sleeve

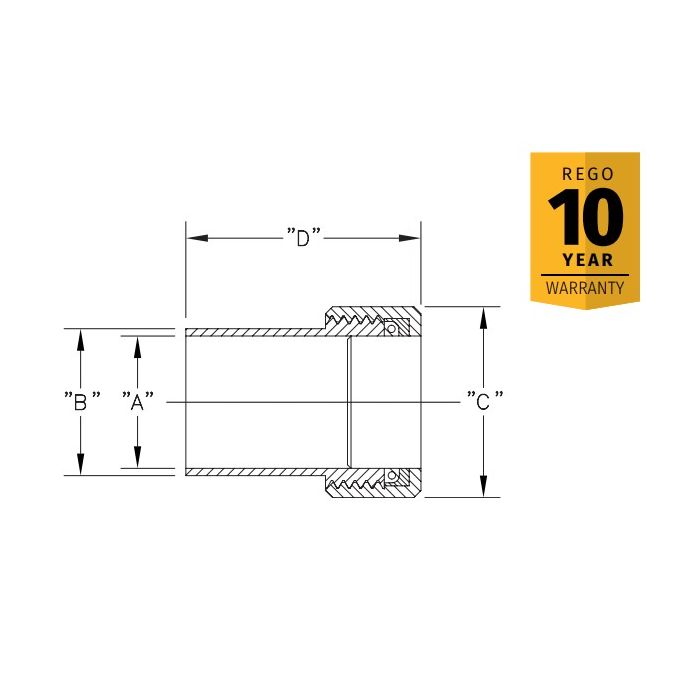

Quikonnect Vacuum Couplings Ordering Information
B-006-M
A 0.072”, 2mm B 0.375”, 10mm C ⅝”, 16mm D 1 1/32”, 26mm
TUBE OD SIZE 1 /16”, 2mm
B-012-M
A 0.135” 3mm B 0.375”, 10mm C ⅝”, 16mm D 1 1/32”, 26mm TUBE OD SIZE ⅛” 3mm
B-018-M
A 0.197”, 5mm B 0.375”, 10mm C ⅝”, 16mm D 1 1/32”, 26mm TUBE OD SIZE 3 /16”, 5mm
B-025-M
A 0.260”, 7mm B 0.375”, 10mm C ⅝”, 16mm D 1 1/32”, 26mm TUBE OD SIZE ¼”, 6mm
B-031-M
A 0.322”, 8mm B 0.500”, 13mm C 13/16”, 16mm D 1¼”, 32mm TUBE OD SIZE 5 /16”, 8mm
B-038-M
A 0.385”, 10MM B 0.500”, 13mm C 13/16”, 16mm D 1¼”, 32mm TUBE OD SIZE ⅜”, 9
B-050-M
A 0.510”, 13mm B 0.625”, 16mm C ⅞”, 22mm D 1¼”, 32mm TUBE OD SIZE ½”, 13mm
B-062-M
A 0.635”, 16mm B 0.750”, 19mm C 1⅛”, 28mm D 1⅜”, 35mm TUBE OD SIZE ⅝”, 16mm
B-075-M
A 0.760”, 19mm B 0.875”, 22mm C 1¼”, 32mm D 1½”, 38mm TUBE OD SIZE ¾”, 19mm
B-087-M
A 0.885”, 22mm B 1.000”, 25mm C 17 /16”, 36mm D 123/32”, 44mm TUBE OD SIZE ⅞”, 22mm
B-100-M
A 1.010”, 26mm B 1.125”, 28mm C 1½”, 38mm D 113/16”, 46mm TUBE OD SIZE 1”, 25mm
B-112-M
A 1.135” 29mm B 1.250” 32mm C 1⅝” 41mm D 115/16” 49mm TUBE OD SIZE 1⅛” 28mm
B-125-M
A 1.260” 32mm B 1.500” 38mm C 2” 51mm D 13 /16” 30mm TUBE OD SIZE 1¼” 32mm
B-138-M
A 1.385” 35mm B 1.625” 41mm C 2” 51mm D 13 /16” 30mm TUBE OD SIZE 1⅜” 35mm
B-150-M
A 1.150” 29mm B 1.750” 44mm C 2¼” 57mm D 13 /16” 30mm TUBE OD SIZE 1½” 38mm
B-162-M
A 1.635” 41 B 1.875” 48 C 2⅜” 60 D 2¼” 57 TUBE OD SIZE 1⅝” 41
B-200-M
A 2.010”, 51mm B 2.250”, 57mm C 2¾”, 70mm D 2.70”, 69mm TUBE OD SIZE 2”, 51mm
