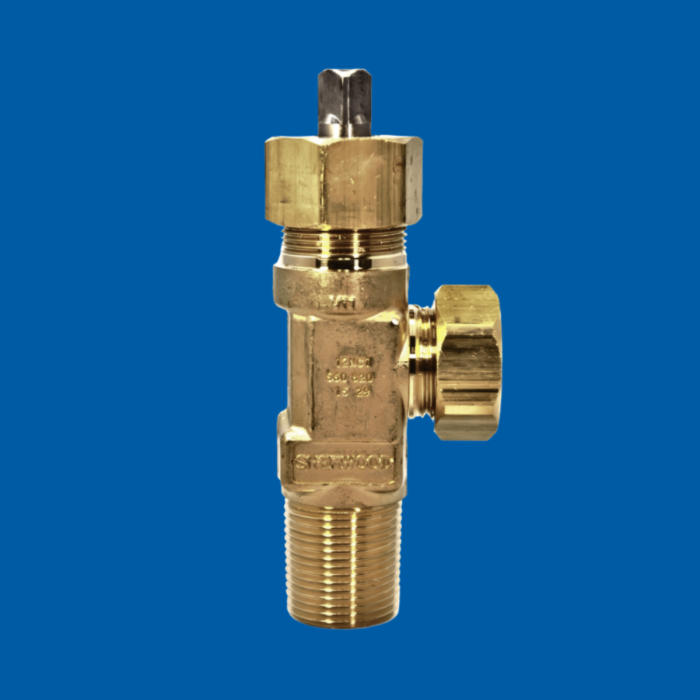

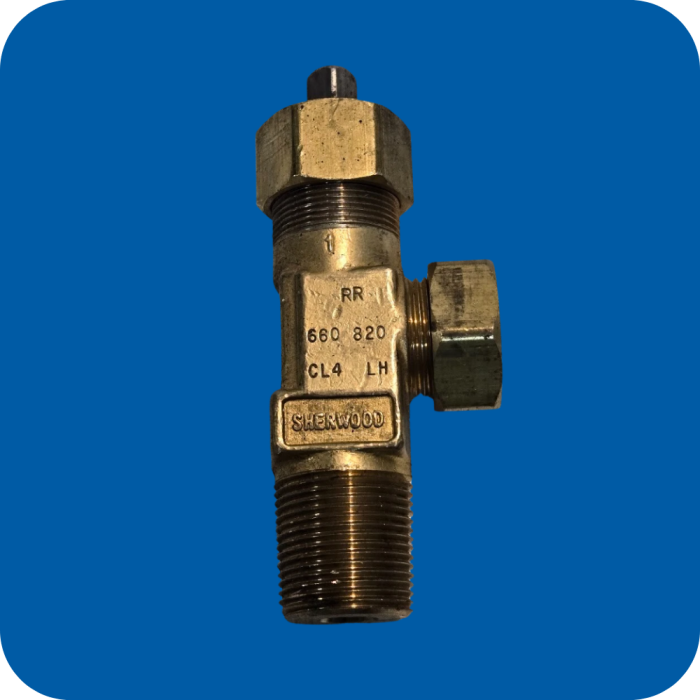

Sherwood Chlorine Cylinder Valve, CGA 820 Outlet, 3/4"-14 CL-2, Cylinder Valve, 158 Fuse Plug, PTFE Packing
In stock
3/4"-14 NGT-CL Cylinder Valve
SKU: 1210X1-B3
- FREE delivery available*
- Next day delivery available (Order before 4pm Mon-Thur)
3/4"-14 NGT-CL Cylinder Valve
SKU
1210X1-B3
Categories:
Chlorine Cylinder Valve, CGA 820 Outlet, 3/4"-14 CL-2, Cylinder Valve, 158 Fuse Plug, PTFE Packing
The Sherwood Exclusive Robust Valve features a heavy-duty body and packing nut for increased load carrying capacity and resistance against stress corrosion and cracking.
Key Features & Benefits
• Approved per the Chlorine Institute Pamphlet 17 Alternate Design Criteria
• Design retains same outlet, inlets, pressure relief device, packing ring, packings, follower, outlet cap, wrenches, yoke and materials as the basic valve
• One-piece Monel® stem offers exceptional durability and positive shut-off in chlorine and other corrosive gas service
• Choice of PTFE or Garlock® 6130 packing for easy operation and durable leak-resistant stem seal
• Large wrench flats on valve body for easy installation
• Robust Aluminum Silicon Bronze (C64210) valve body offers corrosion resistance
Construction
- Body = Aluminum Silicon Bronze
- Stem = Monel ASTM B164-84 Type UNS N04400 or N04405
- Packing Nut = Brass
- Packing Collar = Naval Brass
- Packing Gland = Brass
- Packing = PTFE or Garlock 6130
- Outlet Cap = Brass
- Outlet Cap Gasket = PTFE
- Fusible Plug = Naval Brass
Standards Conformance
- CGA V-9: Standard for Gas Cylinder Valves
- CGA S-1.1: Standard for Pressure Relief Devices
- CGA V-1: Compressed Gas Cylinder Valve Outlet and Inlet Connections Standards
- Chlorine Institute Pamphlet 17: Cylinder and Ton Container Procedure for Chlorine Packaging and Valve Design Criteria
- ISO 10297: International Standard for Cylinder Valves Design Specification
- TPED/ADR: Transportable Pressure Equipment Directives
