Note: Image may not exactly match SKU and is only for representation.

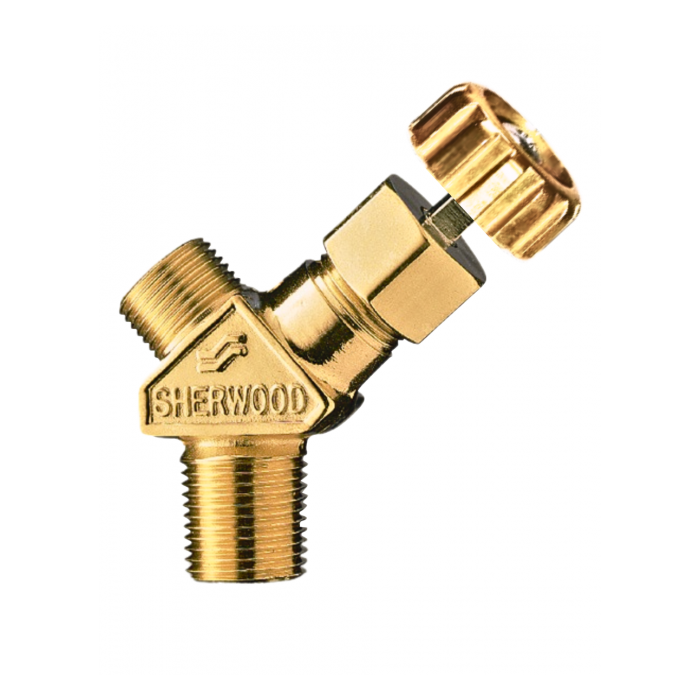

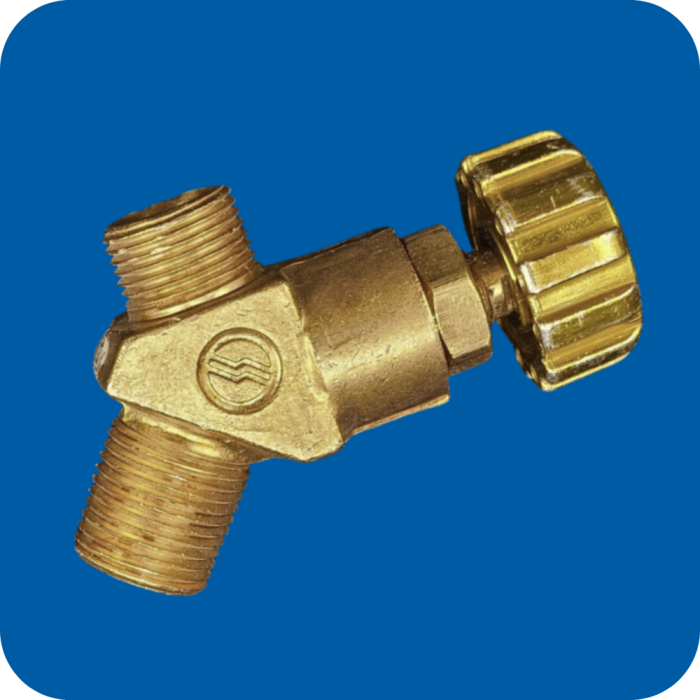

CGA 200 Acetylene Valve, 3/8-18 NGT

In stock

Starting at $14.62

SKU: AVMC201HW

$15.06
  • Buy 25 for $14.12 each and save 6%
  • FREE delivery available*
  • Next day delivery available (Order before 4pm Mon-Thur)

Starting at $14.62

SKU
AVMC201HW
Categories:

As low as $14.62 each!

Materials of Construction

Handwheel: Aluminum A380

Screw: Zinc Plated Alloy Steel

Stem: Brass C36000

Bonnet: Brass C36000

O-Ring: Ethylene Propylene (EPDM)

Seat: Nylon, Zytel 101

Body: Forged Brass C37700

Lubricants: Christo-Lube

Fuse Metal: Bismuth, Lead, Cadmium, Tin

Retaining Ring (AVB521HWM): PH15-7 MO Stainless Steel

Strainer (AVB521HWM): Wire Monel Cloth

Standards of Conformance

CGA V-9 Standard for Gas Cylinder Valves

ISO10297 International Standard for Cylinder Valves Design Specifications

CGA V-1 Compressed Gas Cylinder Valve Outlet

CGA S1.1 Standard for Pressure Relief Devices

A-A-59860 US General Services Administration Standards for Gas

Sherwood AV Series offers handwheel-operated acetylene valves for B & MC cylinders (welding applications). Option of protected internal bonnet design.

CGA 200
.625-20 NGO RH Ext.
3/8"-18 NGT
212° F
  • Use with 10 cu. ft. capacity (MC style) cylinders
  • Enables ease of use in transportation and in the field
  • Ideal for brazing and cutting applications
