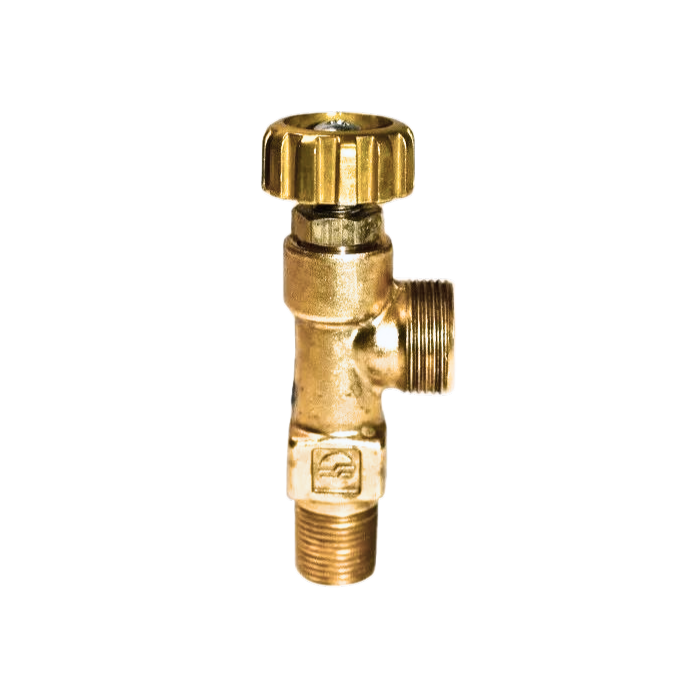

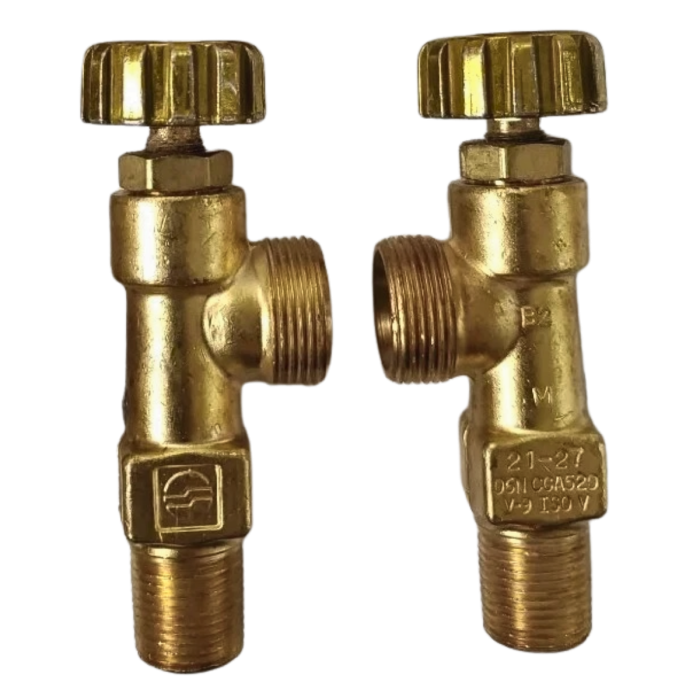

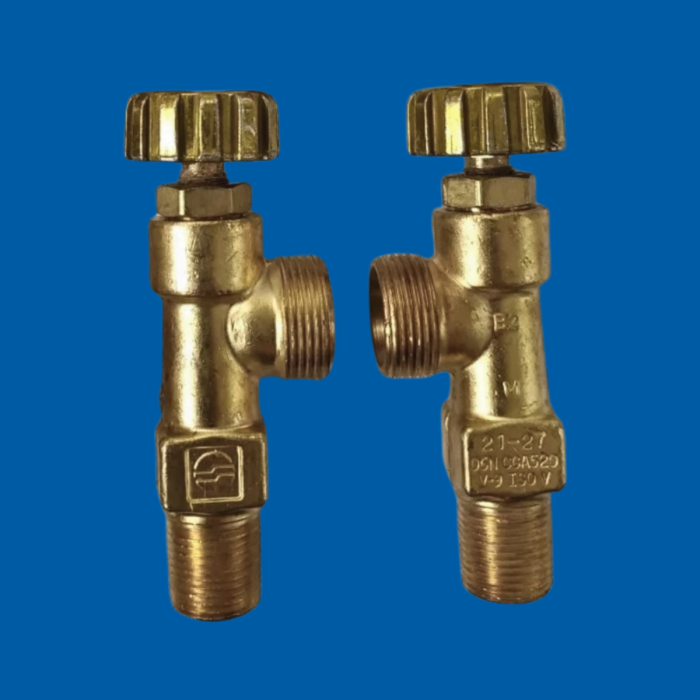

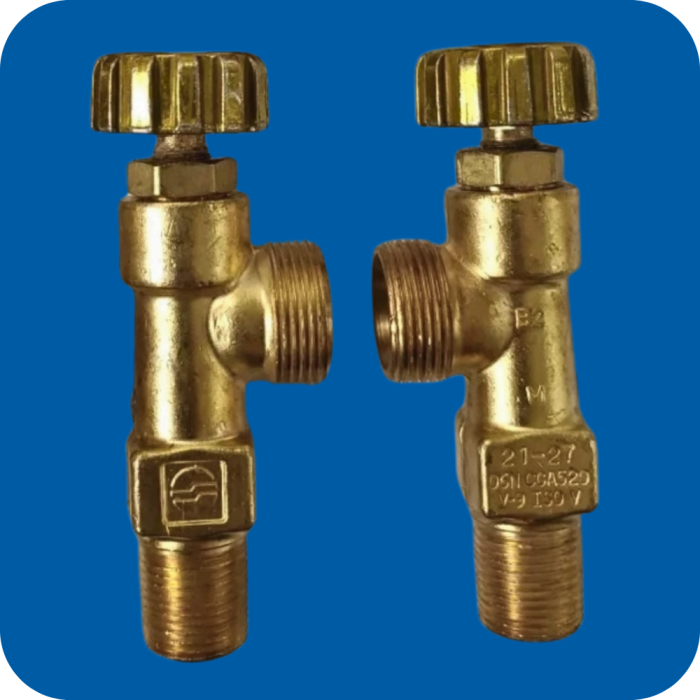

Sherwood Acetylene Valve, CGA 520, 3/8-18'' NGT, Handwheel Operated
In stock
$15.29
• Use with 40 cu. ft. capacity (B style) cylinders
• Provides rugged durability in construction and field servicing applications
• Enables positive shut-off
• Handwheel included
SKU: AVB521HW
- Buy 25 for $14.33 each and save 6%
- FREE delivery available*
- Next day delivery available (Order before 4pm Mon-Thur)
• Use with 40 cu. ft. capacity (B style) cylinders
• Provides rugged durability in construction and field servicing applications
• Enables positive shut-off
• Handwheel included
SKU
AVB521HW
Categories:
As low as $14.92 each!
Sherwood AV Series offers handwheel-operated acetylene valves for B & MC cylinders (welding applications). Option of protected internal bonnet design.
- Use with B style cylinders
- Handwheel enables ease of use in transportation and in the field
- Provides rugged durability for construction and field servicing applications
AV-HW Series Small Cylinder Acetylene Handwheel-Operated Valves Materials of Construction
Handwheel: Aluminum A380
Screw: Zinc Plated Alloy Steel
Stem: Brass C36000
Bonnet: Brass C36000
O-Ring: Ethylene Propylene (EPDM)
Seat: Nylon, Zytel 101
Body: Forged Brass C37700
Lubricants: Christo-Lube
Fuse Metal: Bismuth, Lead, Cadmium, Tin
Retaining Ring (AVB521HWM): PH15-7 MO Stainless Steel
Strainer (AVB521HWM): Wire Monel Cloth
Standards of Conformance
CGA V-9 Standard for Gas Cylinder Valves
ISO10297 International Standard for Cylinder Valves Design Specifications
CGA V-1 Compressed Gas Cylinder Valve Outlet
CGA S1.1 Standard for Pressure Relief Devices
A-A-59860 US General Services Administration Standards for Gas Cylinder Valves
