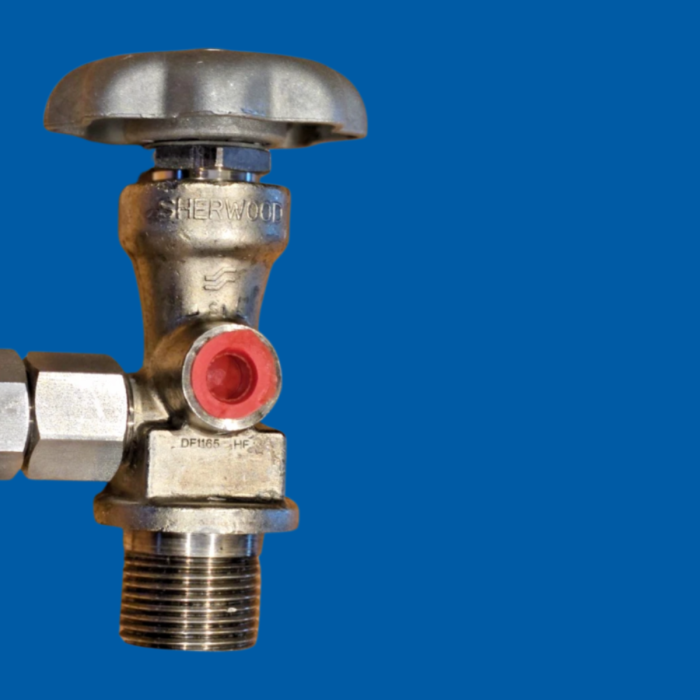

Sherwood Valve, Horizontal, 1/4-18 NPT, 3/4 NGT, CG5 PRD

Dual Fuel Valves - Compressed Natural Gas (CNG) with 5000 PSI Pressure Relief Device, DL-1/4NPT 3/4NGT 5000 PSI CG5

Alternative Fuel Valve

• Dual outlet valves for fuel gas manifold use
• Dual outlet design allows for manifolding without use of adapters or tees, eliminating multiple joints
• Location of outlets above valve seat enables individual cylinder isolation without shutting off manifold
• Designed for direct manifold connections, reducing components and leak points
• Crimped seat feature prevents seat extrusion and cold flow of the polymer seat
• Available in multiple seat material configurations to accommodate all high-purity gas applications
• Increased flow (Cv) to aid in reducing vent and purge times
• Low operating torque design to ensure ease of operation during filling and use
• Available with unitized Pressure Relief Device having fuse-metal backed or unbacked burst disc
• Available with standard CGA connections as well as international inlets and outlets



Design Specifications

Maximum Working Pressure= 6250 PSI / 431 Bar
Burst Pressure= 20,000 PSI / 1379 Bar
Storage Temperature Range= -65˚ F ¤ +155˚ /  F -54˚ C ¤ +68˚ C
Operating Temperature Range= -50˚ F ¤ +120˚ F / -46˚ C ¤ +49˚ C
Minimum Cycle Life= 5000 Cycles
Operating Torque= 15–25 in.-lbs. / 1.7–2.8 N-m
Closing Torque= 25–35 in.-lbs. / 2.8–3.9 N-m
Bonnet Installation Torque= 45–55 ft.-lbs / 61–74.5 N-m
Pressure Relief Device Installation Torque= 30–40 ft.-lbs. /  40.7–54 N-m
Stem Nut Installation Torque= Nut Flush with Top of Stem

Standards Conformance

CGA V-9 Standard for Gas Cylinder Valves

CGA S-1.1 Standard for Pressure Relief Devices

CGA V-1 Compressed Gas Cylinder Valve Outlet and Inlet Connections

A-A-59860 U.S. General Services Administration Standards for Gas Cylinder Valves
