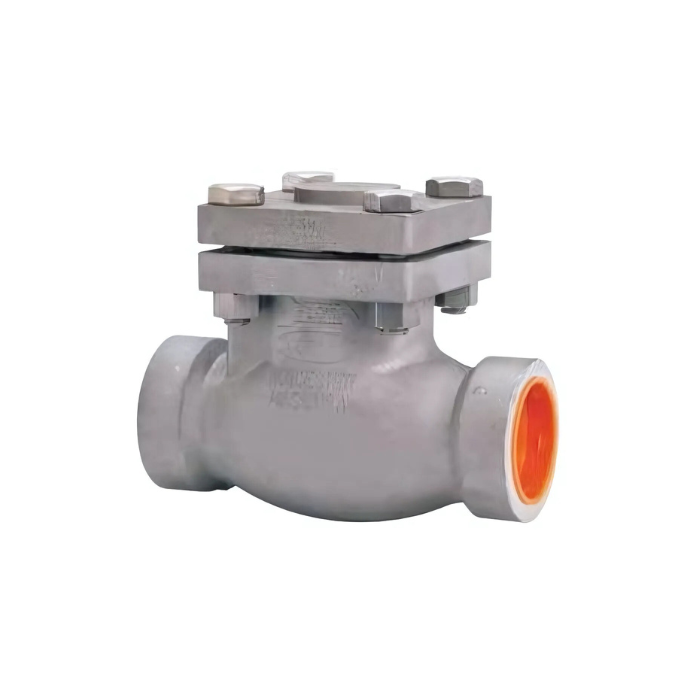

Valve Swing Check Stainless Steel Butt Weld 2" Hard Seat Schedule 10
In stock
Valve Swing Check Stainless Steel Butt Weld 2" Hard Seat Schedule 10
SKU: S-886M-16W3A
$1,795.47
- Buy 2 for $1,667.22 each and save 7%
- FREE delivery available*
- Next day delivery available (Order before 4pm Mon-Thur)
Valve Swing Check Stainless Steel Butt Weld 2" Hard Seat Schedule 10
SKU
S-886M-16W3A
Categories:
As low as $1544.56 each
Valve Swing Check Stainless Steel Butt Weld 2" Hard Seat Schedule 10
- Can be installed and utilized from top
- Made to avoid cryo back flow
- High fluid capacity
- 316L stainless steel body/cap/arm
- ½” to 4” (15mm - 100mm)
- -325°F --> 150°F (-196°C --> +66°C)
S-0886GF-4S ½” 15 mm Socket Weld Soft 400 (26 Bar) 4.50 3 Lbs.
S-0886GF-6S ¾” 20 mm Soft 400 (26 Bar) 12.00 6 Lbs.
S-0886GF-8S 1” 25 mm Soft 400 (26 Bar) 61.00 11 Lbs.
S-0886GF-12S 1½” 40 mm Soft 400 (26 Bar) 99.00 17 Lbs.
S-000886-4S ½” 15 mm Socket Weld Soft 400 (26 Bar) 4.50 3 Lbs.
S-000886-6S ¾” 20 mm Soft 400 (26 Bar) 12.00 6 Lbs.
S-000886-8S 1” 25 mm Soft 400 (26 Bar) 61.00 11 Lbs.
S-000886-12S 1½” 40 mm Soft 400 (26 Bar) 99.00 17 Lbs.
S-000886-4WA ½” 15 mm Butt Weld Soft 10 400 (26 Bar) 4.50 3 Lbs.
S-000886-8WA 1” 25 mm 10 400 (26 Bar) 18.00 11 Lbs.
S-000886-12WA 1½” 40 mm 10 400 (26 Bar) 61.00 17 Lbs.
S-000886-16W3A 2” 50 mm 10 720 (50 Bar) 99.00 17 Lbs.
S-000886-24WA 3” 80 mm 10 275 (19 Bar) 255.00 47 Lbs.
S-000886-24WJ 3” 80 mm 40 275 (19 Bar) 225.00 46 Lbs.
S-000886-32W3J 4” 100 mm 40 720 (50 Bar) 475.00 95 Lbs.
S-000886-32WA 4” 100 mm 10 275 (19 Bar) 475.00 95 Lbs.
S-00886M-4S3 ½” 15 mm Socket Weld Metal 720 (50 Bar) 4.50 3 Lbs.
S-00886M-8S3 1” 25 mm 720 (50 Bar) 18.00 11 Lbs.
S-00886M-12S3 1½” 40 mm 720 (50 Bar) 61.00 17 Lbs.
S-0886M-16W3A 2” 50 mm Butt Weld Metal 10 720 (50 Bar) 99.00 17 Lbs.
S-00886M-24W3J 3” 80 mm 40 720 (50 Bar) 225.00 46 Lbs.
S-00886M-24W3A 3” 80 mm 10 720 (50 Bar) 225.00 46 Lbs.
S-00886M-32WA 4” 100 mm 10 275 (19 Bar) 475.00 95 Lbs.
S-00886M-32W3J 4” 100 mm Butt Weld 40 720 (50 Bar) 475.00 95 Lbs.
S-886MGF-16W3A 2” 50 mm Butt Weld Metal 10 720 (50 Bar) 99.00 17 Lbs.
S-886MGF-24W3A 3” 80 mm Butt Weld 10 720 (50 Bar) 225.00 46 Lbs.
